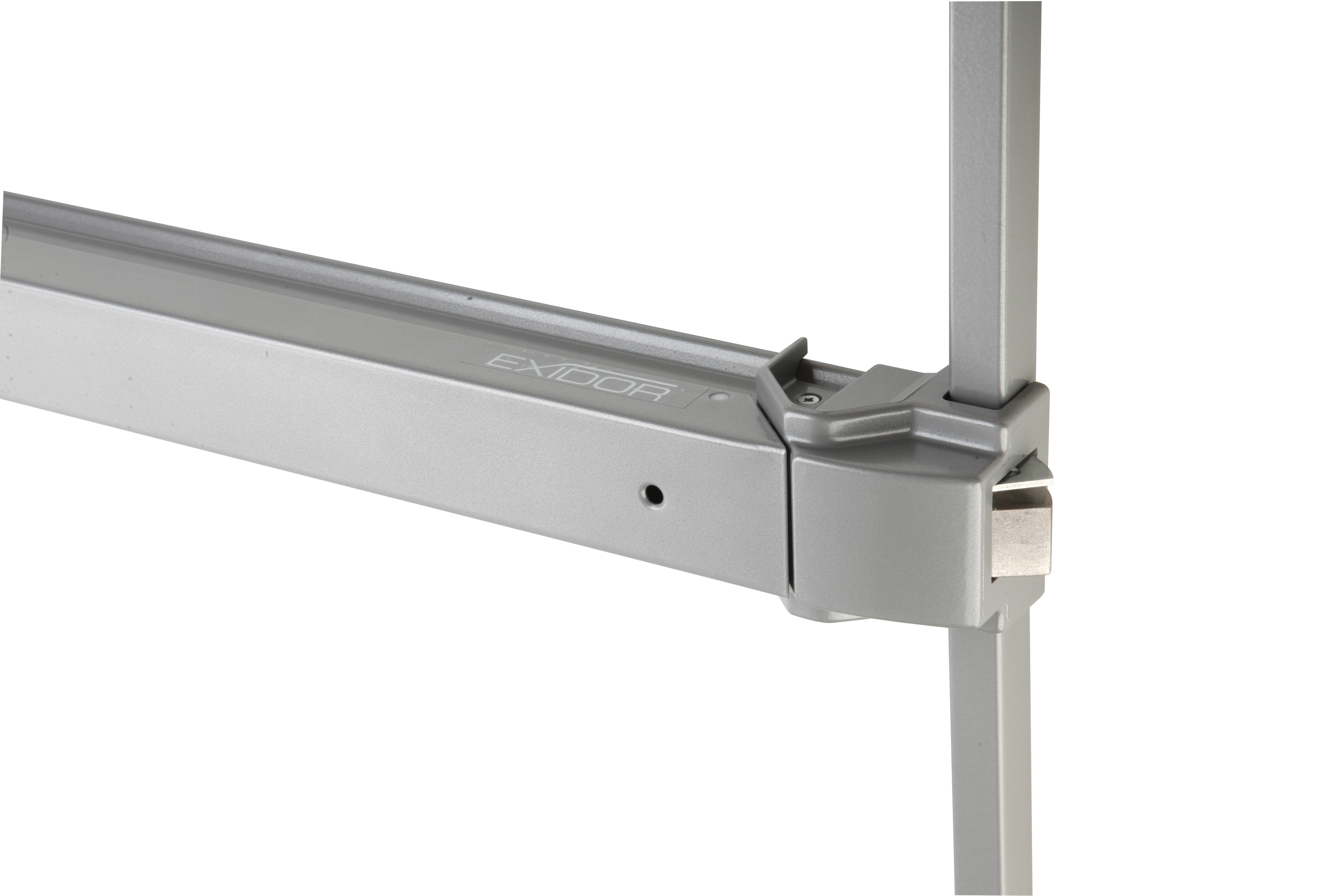

TB468 & TB469 Electronic latch retraction touch bar

Exidor three-point locking electronic latch retraction panic touch bar with central latch and horizontal Pullman latches, suitable for use with access control systems. Ideal for schools and commercial applications, where greater awareness of security is required.

The unit is operated by pressing the bar into the door face retracting the Pullman latches and releasing the bar returning the Pullman latches to the rest position.

The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide - bar widths are set sizes with other sizes available on request.

Certified in compliance with EN 1125. Keeps available for alternative frame arrangements.

Indicate the required finish when ordering.
  • Brochures (for Webshop/AEM) S3

  • Built-in electronic dogging

    Microswitch and alarm options, suffix order code with “MS” for microswitch or “AL” for alarmed

    Supplied with keeps and fixings, keeps available for alternative frame arrangements

    TB468 suitable for door widths between 692 to 900mm / TB469 suitable for door widths between 872 and 1200

    Low power usage, from a 24V DC 1A power supply (source separately)

  • NameValue
    BrandUNION
    AlarmedNo
    Bolt StyleLatch
    Cylinder DetailN/A
    DoggedNo
    Door OpeningOutward
    Door TypeRebated Double Active Leaf, Single, Steel, Timber
    Durability200000
    Finish TypeSilver
    Fire RatedN/A
    Fire Rated MetalN/A
    Fire Rated TimberN/A
    HandingUniversal
    Keep DetailStandard
    Key RetentionN/A
    Locking Points2
    Max Door Height (mm)2440
    Micro SwitchedNo
    Mounting MethodSurface Mounted
    Operator DetailN/A
    Product SubtitleIntroducing The TB468 & TB469 Electronic Latch Retraction Touch Bar By Exidor. This Three-point Locking Panic Touch Bar Enhances Security In Schools And Commercial Spaces. With Built-in Electronic Dogging And Optional Microswitch Or Alarm Features, It’s Easy To Use And Install. Available In Sizes For Doors Up To 1200mm Wide.
    Projection (mm)62mm
    StandardCE, EN 1125, UKCA
  • ProductProduct ID
    TB468 & TB469 Electronic latch retraction touch bar15938600
    TB468 & TB469 Electronic latch retraction touch bar15938700
