UNION

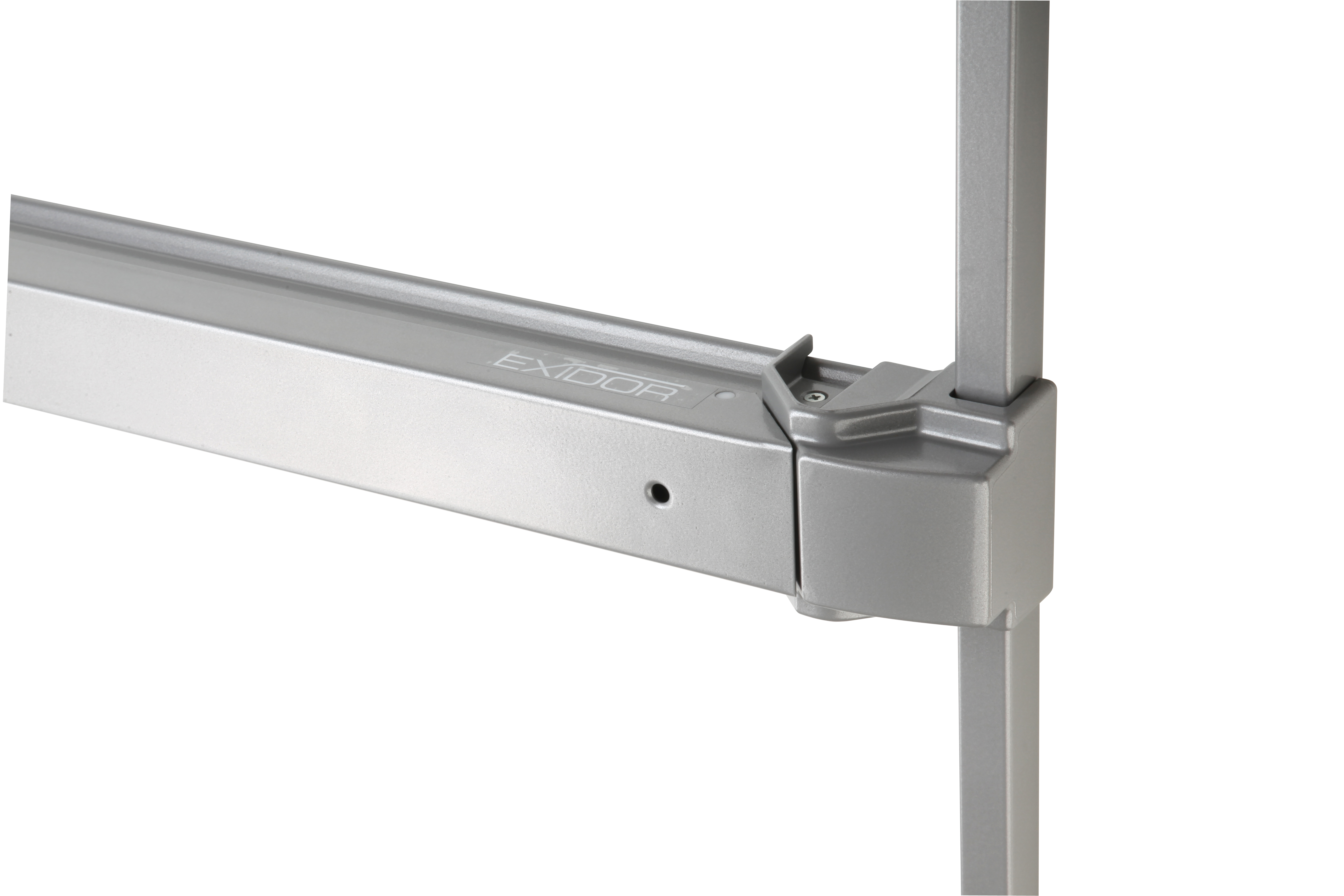

TB454 & TB455 Electronic latch retraction touch bar

Exidor three-point locking electronic latch retraction panic touch bar with central latch and vertical Pullman latches, suitable for use with access control systems.

Ideal for data centres, where greater awareness of security is required. The unit is operated by pressing the bar into the door face retracting the Pullman latches, releasing the bar returns the Pullman latches to the rest position.

The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide - bar widths are set sizes with other sizes available on request.

Certified in compliance with EN 1125. Keeps available for alternative frame arrangements. Indicate the required finish when ordering.
  • Brochures (for Webshop/AEM) S3

  • Built-in electronic dogging

    Microswitch and alarm options, suffix order code with “MS” for microswitch or “AL” for alarmed

    Supplied with keeps and fixings, keeps available for alternative frame arrangements

    TB454 suitable for door widths between 692 to 900mm / TB455 suitable for door widths between 872 and 1200

    Low power usage, from a 24V DC 1A power supply (source separately)

  • NameValue
    BrandUNION
    AlarmedNo
    Bolt StyleLatch
    Cylinder DetailN/A
    DoggedNo
    Door OpeningOutward
    Door TypeSingle, Steel, Timber
    Durability200000
    Finish TypeSilver
    Fire RatedN/A
    Fire Rated MetalN/A
    Fire Rated TimberN/A
    HandingUniversal
    Keep DetailStandard
    Key RetentionN/A
    Locking Points3
    Max Door Height (mm)2440
    Mounting MethodSurface Mounted
    Operator DetailN/A
    Product SubtitleIntroducing The TB454 & TB455 Electronic Latch Retraction Touch Bar By Exidor. This Advanced Panic Touch Bar Features Three-point Locking, Ideal For Enhancing Security In Data Centres. Available For Doors Up To 1200mm, It Includes Built-in Electronic Dogging And Options For Microswitch Or Alarm. Supplied With Keeps And Fixings For Versatile Frame Arrangements.
    Projection (mm)62mm
    StandardCE, EN 1125, UKCA
  • ProductProduct ID
    TB454 & TB455 Electronic latch retraction touch bar15905100
    TB454 & TB455 Electronic latch retraction touch bar15938200
    TB454 & TB455 Electronic latch retraction touch bar15938300
    TB454 & TB455 Electronic latch retraction touch bar15939900
