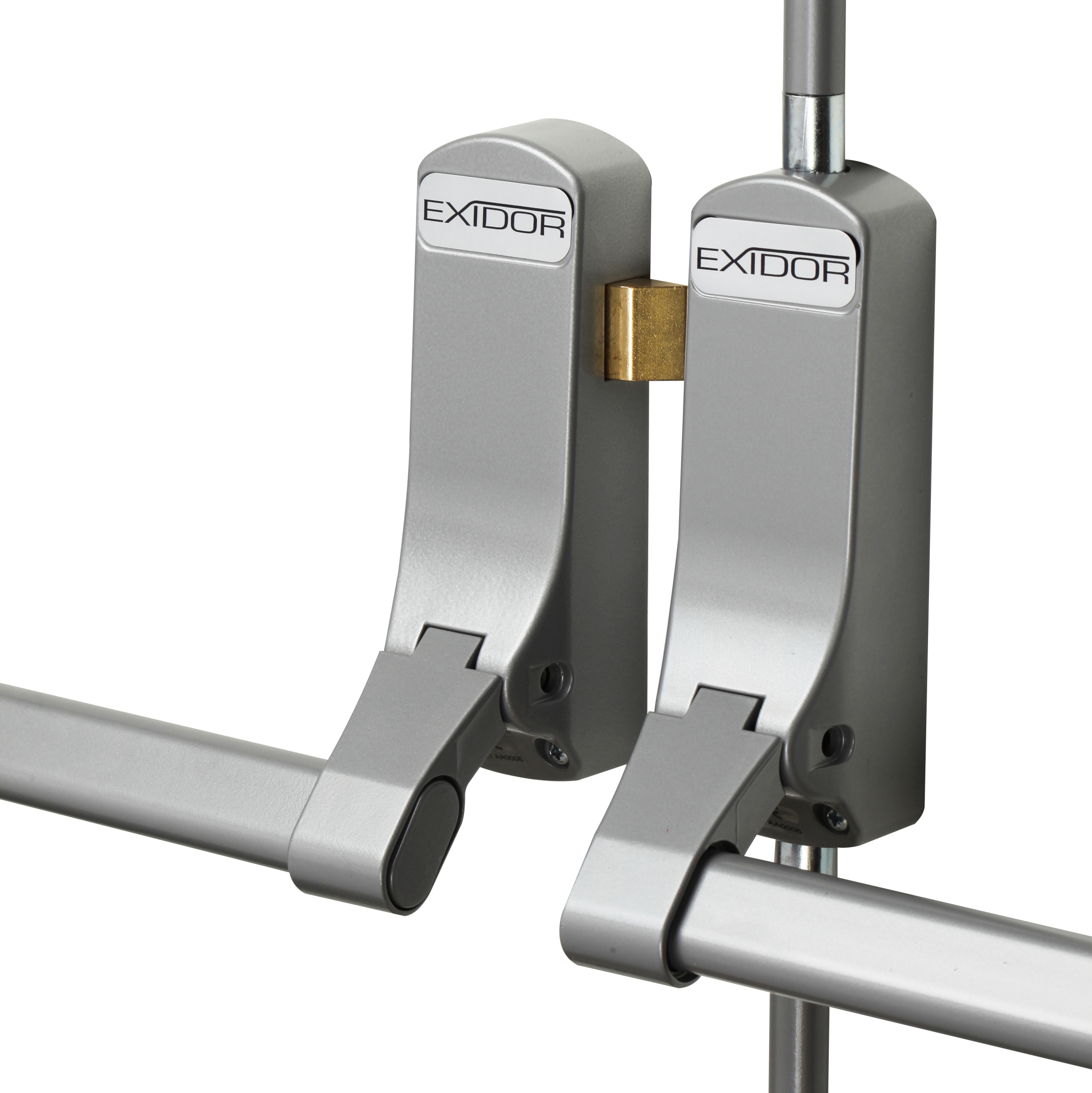

296 latch unit for use on active leaf and a 294 bolt unit which secures inactive leaf
Microswitch option available (Suffix order code with “MS” for microswitch)
Keeps available for alternative frame arrangements and aluminium doors
Ideal for most public space double doors such as shopping centres, schools and cinemas
Door type: Rebated double doorset – latch on active leaf and bolt on inactive leaf
Name | Value |
---|---|
Brand | UNION |
Activation | Push Bar |
Alarmed | No |
Cylinder Detail | N/A |
Dimensions (mm) | 75 X 160 X 1250 |
Dogged | No |
Door Height (mm) | 2440 |
Door Opening | Outward |
Door Type | Rebated Double, Timber |
Durability | 200000 |
Escape Hardware Feature | Double Door - Rebated |
Escape Hardware Function | Rebated |
Fire Door Approval | Yes |
Fire Rated Metal | FD120, FD240 |
Fire Rated Timber | FD120, FD30, FD60, FD90 |
Fixings | Fixings Supplied |
Keep Detail | Standard |
Key Retention | N/A |
Locking Points | 3 |
Max Door Height (mm) | 2440 |
Max Door Thickness (mm) | 46 To 51 |
Max Door Width (mm) | 1220 |
Mounting Method | Surface Mounted |
Operation Type | Push |
Operator Detail | Push Bar |
Product Subtitle | Introducing The 285 & 285A Rebated Double Doorset By Exidor. This Stylish And Secure Double Doorset Features A Single Point Panic Latch And Two Point Panic Bolt, Perfect For Timber Or Metal Doors. Available In SIL Or SSE Finishes, It Offers Flexibility With Adjustable Shoot Bolts And A Customizable Push Bar. Safety Certified For Peace Of Mind. |
Projection (mm) | 98 |
Standard | CE, Certifire, EN 1125, EN 1634-1, UKCA |
Style | Panic |
Suitable Door Type | Steel & Timber |
Webshop Facet Feature | Double Door - Rebated |
Webshop Facet Function | Rebated |
Product | Product ID |
---|---|
285 & 285A Rebated Double Doorset | 15000130 |
285 & 285A Rebated Double Doorset | 15000131 |
285 & 285A Rebated Double Doorset | 15000150 |
285 & 285A Rebated Double Doorset | 15000182 |
285 & 285A Rebated Double Doorset | 15000234 |
285 & 285A Rebated Double Doorset | 15001130 |
285 & 285A Rebated Double Doorset | 15001230 |
285 & 285A Rebated Double Doorset | 15001310 |
285 & 285A Rebated Double Doorset | 15001320 |
285 & 285A Rebated Double Doorset | 15002130 |
285 & 285A Rebated Double Doorset | 15004130 |
285 & 285A Rebated Double Doorset | 15004131 |
285 & 285A Rebated Double Doorset | 15005130 |
285 & 285A Rebated Double Doorset | 15006130 |
285 & 285A Rebated Double Doorset | 15019600 |
285 & 285A Rebated Double Doorset | 15902480 |
285 & 285A Rebated Double Doorset | 15902481 |
285 & 285A Rebated Double Doorset | 15902482 |
285 & 285A Rebated Double Doorset | 15902484 |
285 & 285A Rebated Double Doorset | 15903298 |
285 & 285A Rebated Double Doorset | 15908231 |
