UNION

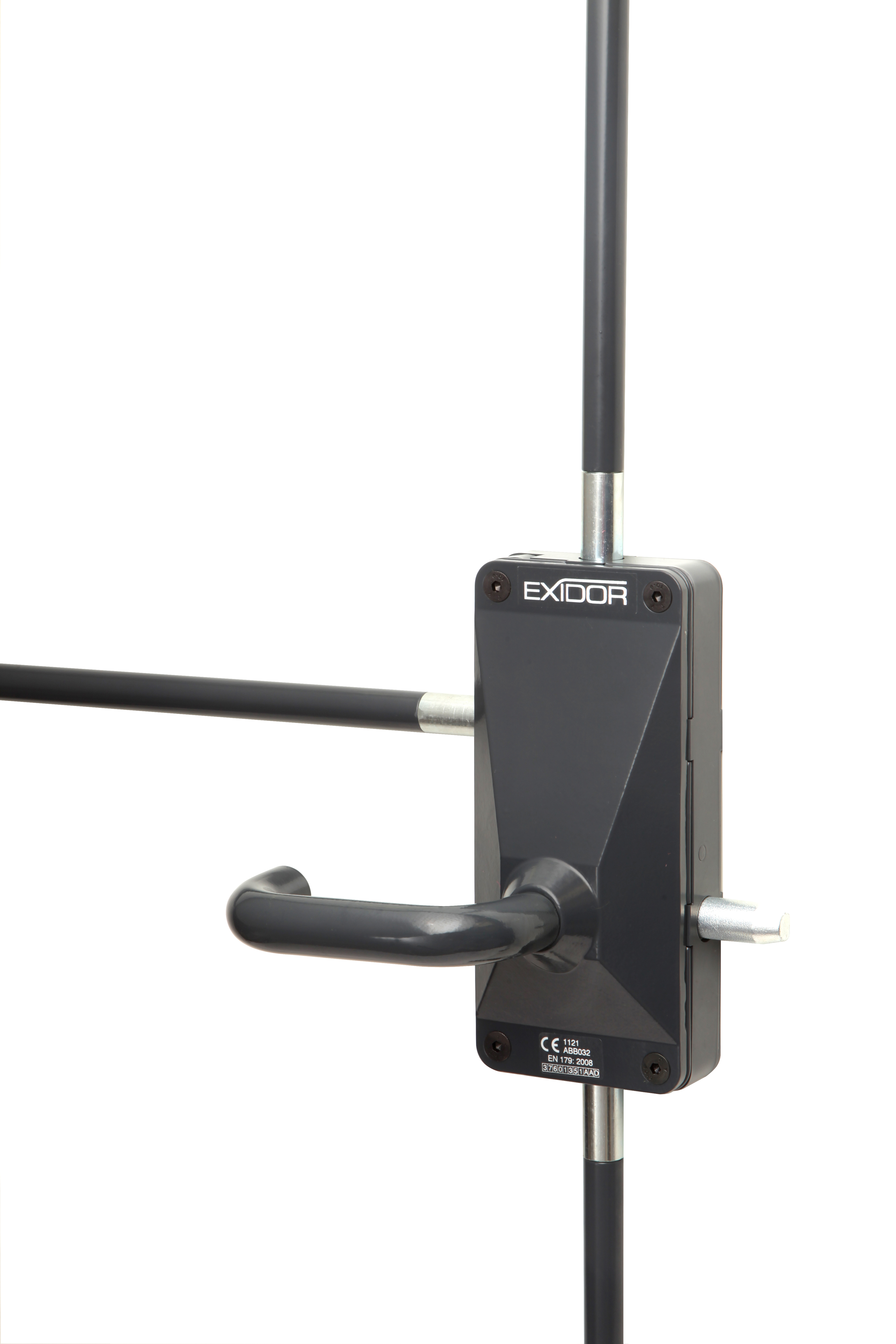

704L/30 Lever unit with 4 point locking

Exidor high-security four-point locking lever-operated emergency unit with shoot bolts. Four-point locking on a single door with locking points on all 4 edges of the door for additional security.

Ideal for restricted access areas within sports and concert venues, where greater intruder resistance is required. The unit is operated by pushing down on the lever handle to retract the bolts, the bolts remain retracted until automatically released on the closing of the door.

Certified in compliance with EN 179 and suitable for use on FD30/FD60 timber doors and FD120/FD240 metal doors. Tested and approved to LPS 1175.

Indicate the required finish when ordering.
  • Brochures (for Webshop/AEM) S3

  • Solid stainless steel option available

    Supplied with timber or steel door keeps and fixings

    Keeps available for alternative frame arrangements

    Range of outside access devices

  • NameValue
    BrandUNION
    AlarmedNo
    Bolt StyleCentral Latch Bolt & Adjustable Top Bottom Shoot Bolts
    Cylinder DetailN/A
    DoggedNo
    Door TypeDouble Either Leaf, Single, Steel
    Durability200000
    Finish TypeAnthracite Grey
    HandingUniversal
    Keep DetailStandard
    Key RetentionN/A
    Locking Points4
    Max Door Height (mm)2440
    Max Door Width (mm)1220
    Micro SwitchedNo
    Mounting MethodSurface Mounted
    Operator DetailN/A
    Product SubtitleIntroducing The Exidor 704L/30 Lever Unit With 4 Point Locking, Designed For High-security Access In Sports And Concert Venues. This Robust Unit Features Solid Stainless Steel Options And Provides Four-point Locking For Enhanced Safety. Supplied With Timber Or Steel Door Keeps, It's Perfect For Restricted Areas.
    Projection (mm)123
    StandardCE, Certifire, EN 1634-1, EN 179, LPS 1175, UKCA
  • ProductProduct ID
    704L/30 Lever unit with 4 point locking15093008
    704L/30 Lever unit with 4 point locking15093017

Similar products

  • 702L/30 & 732L/30 Lever unit

    Exidor high-security two-point locking lever-operated emergency unit with shoot bolts. Non-handed, it is Ideal for limited access warehouse or commercial property, where greater intruder resistance is required.

    The unit is operated by pushing down on the lever handle to retract the bolts, the bolts remain retracted until automatically released on the closing of the door.

    Certified in compliance with EN 179 and suitable for use on FD30/FD60 timber doors and FD120/FD240 metal doors.

    Indicate the required finish when ordering.

  • 703L/30 & 733L/30 Lever unit

    Exidor high-security three-point locking lever-operated emergency unit with shoot bolts. Three-point locking mechanism with vertical and central shoot bolts. Ideal for limited access areas in secure buildings such as banks, where greater intruder resistance is required.

    The unit is operated by pushing down on the lever handle to retract the bolts, the bolts remain retracted until automatically released on the closing of the door.

    Certified in compliance with EN 179 and suitable for use on FD30/FD60 timber doors and FD120/FD240 metal doors. Tested and approved to LPS 1175.

    Indicate the required finish when ordering.
