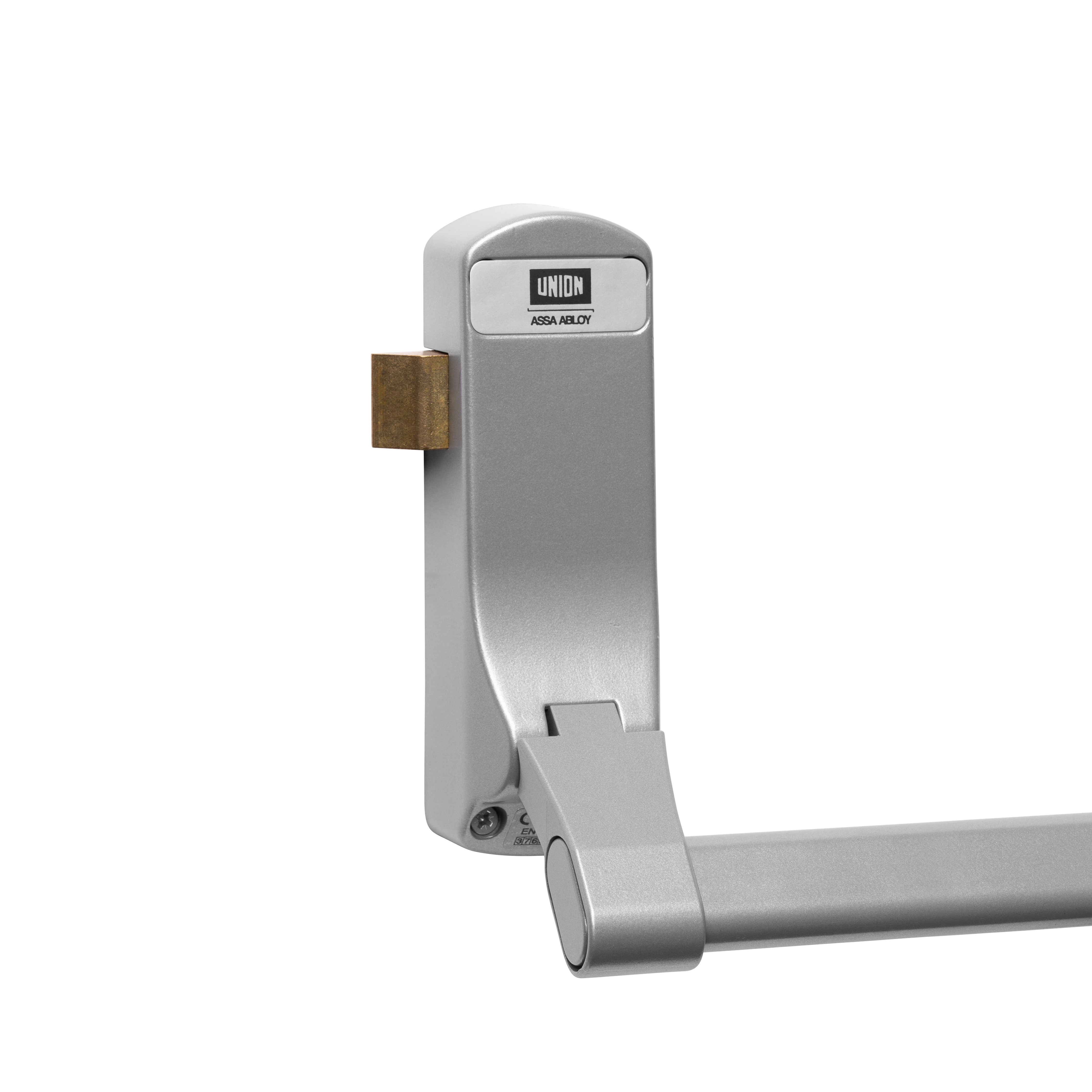

Exisafe CE853 panic latch

The Exisafe CE853 panic latch is for use in buildings that are accessed by the public, its push bar can be cut to size on site to fit it to each door and downward pressure on the bar withdraws the latch ensuring the immediate release of the door. It has universal handing and can be used on outward-opening single doorsets. It is tested to EN 1125 and up to FD120 on timber doors and FD240 on metal doors.
  • Brochures (for Webshop/AEM) S3
    Dimensional Drawings (for Webshop/AEM/Priint) S3

  • Single panic latch

    Universal handing

    1180mm push bar - can be cut to size on site

    For use on outward opening single doorsets

    Timber or metal fixings variants available

  • NameValue
    BrandUNION
    ActivationPush Bar
    Bolt StyleShoot Bolts
    Cylinder DetailN/A
    Cylinder IncludedNo
    Dimensions (mm)1220 X 160 X 75
    DoggedN/A
    Door Height (mm)2440
    Door OpeningOutward
    Door TypeMetal, Single, Timber
    Durability200000
    Escape Hardware FeatureSingle Door
    Escape Hardware FunctionShoot Bolt
    FinishSilver
    Fire Door ApprovalYes
    Fire RatedSteel & Timber
    Fire Rated MetalFD240
    Fire Rated TimberFD120
    HandingUniversal
    Locking Points1
    Max Door Height (mm)2440
    Max Door Thickness (mm)46 To 51
    Max Door Weight (kg)200kg
    Max Door Width (mm)1220
    Micro SwitchedN/A
    Mounting MethodSurface Mounted
    Operator DetailPush Bar
    Product SubtitleIntroducing The Exisafe CE853 Panic Latch, Designed For Public Buildings. This Versatile Latch Features A 1180mm Push Bar That Can Be Cut To Size On-site, Ensuring A Perfect Fit For Any Door. With Universal Handing, It’s Ideal For Outward-opening Doors, Providing Quick And Easy Access When Needed.
    Projection (mm)98
    SKU codeJ-CE853PLM-SIL
    StandardCertifire, EN 1125, EN 1634-1, UKCA
    StylePanic
    Suitable Door TypeSteel & Timber
    Webshop Facet FeatureSingle Door
    Webshop Facet FunctionShoot Bolt
  • ProductProduct ID
    Exisafe CE853 panic latchJ-CE853PL-SIL
    Exisafe CE853 panic latchJ-CE853PLM-SIL
