UNION

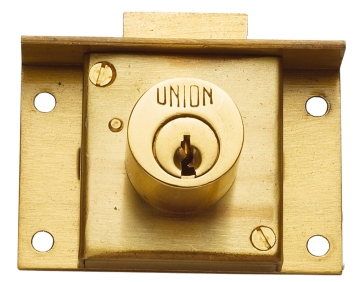

Cylinder cut till lock

For wooden drawers or tills. To suit drawers or tills up to 23mm material thickness.
  • Dimensional Drawings (for Webshop/AEM/Priint) S3
  • NameValue
    BrandUNION
    EAN code5011802008014
    Range NameUNION
    Warranty (Years)3
    Product SubtitleSecure Your Wooden Drawers And Tills With The UNION Cylinder Cut Till Lock. Designed For Materials Up To 23mm Thick, This Reliable Lock Ensures Peace Of Mind While Adding A Touch Of Quality To Your Storage Solutions. Trust UNION For Durability And Style In Every Detail.
    SKUJ4004-PL
    SKU codeJ4004-PL

Similar products

  • 63mm cupboard lock - polished brass

    Light duty cupboard knob suitable for cupboard doors

  • Striking plate

    For use with locks as listed below: 4003 4006 4010 4046 4106 4110 4137 4143 4146 4147 4348

  • Cylinder cut till lock

    For wooden drawers or tills. To suit drawers or tills up to 23mm material thickness.

  • 4010 cylinder draw lock - polished brass

  • Cylinder cupboard lock

    For wooden doors hinged on the left or right. To suit doors 12. 5mm material thicknessSuitable for hinged cupboard doors.

  • Cylinder cupboard lock

    For wooden doors hinged on the left or right. To suit doors 12. 5mm material thicknessSuitable for hinged cupboard doors.

  • 4110 cylinder cupboard lock - polished brass

    Cylinder cupboard lock for wooden doors hinged on the left or right.

    To suit doors 26.5mm material thickness.

    Supplied with 53028 cylinder rose.

    Case Size: 44.5mm (1.75”)

    Cylinder Projection: 27mm

    Case: Brass, sanded

    Cap: Brass

    Striking Plate: Supplied separately

    Deadbolt: Brass

    Cylinder Type: Brass, 5­ pin tumbler mechanism

    Keying Groups: May be supplied standard differ, keyed alike, keyed to pass or masterkeyed

    Finish: PL ­- Polished Brass, SC - Satin Chrome

  • 4137 cylinder cut cupboard/drawer lock - polished brass

    For wooden doors or drawers.

    To suit doors or drawers up to 23mm material thickness.

    Case size: 51mm (2”) or 63.5mm (2.5”)

    Cylinder Projection: 26.5mm

    Case: Zinc, gold enamel

    Cap: Steel, zinc plated

    Striking Plate: Supplied separately.  See separate page

    Deadbolt: Zinc, brass plated

    Cylinder Type: Zinc, with brass cap.

    Finish: PL - Polished Brass, SC ­- Satin Chrome

  • Cylinder cut cupboard/drawer lock

    For wooden doors or drawers. To suit doors or drawers up to 23mm material thickness.

  • Cylinder cut cupboard/drawer lock

    For wooden doors or drawers. To suit doors or drawers up to 23mm material thickness.

  • 4138 cylinder cut cupboard/till lock - polished brass

    For wooden doors, tills or drawers.

    To suit doors or drawers up to 23mm material thickness.

    Case Size: 51mm (2”) or 63.5mm (2.5”)

    Cylinder Projection: 26.5mm

    Case: Zinc, gold enamel

    Cap: Steel, zinc plated

    Striking Plate: Brass, 4138­10, See separate page

    Deadbolt: Zinc, brass plated

    Cylinder Type: Zinc, with brass cap.

    Key Blank Number: KB11­534­55

    Finish: PL ­- Polished Brass, SC ­- Satin Chrome

  • Cylinder cut cupboard/till lock

    For wooden doors or drawers. To suit doors or drawers up to 23mm material thickness.

  • Cylinder cupboard lock

    For wooden doors hinged on the left or right. To suit doors up to 12. 5mm material thickness. Suitable for cupboard doors.

  • Cylinder cupboard/drawer lock

    For wooden doors, drawers or cupboard locks. To suit doors or drawers up to 12.5mm material thickness.

  • Cylinder cupboard/till lock

    For wooden doors or tills. To suit doors or tills up to 12.5mm material thickness. Suitable for cupboard doors or tills.

  • Cylinder cupboard/till lock

    For wooden doors or tills. To suit doors or tills up to 12.5mm material thickness. Suitable for cupboard doors or tills.

  • 4148 cylinder cupboard/till lock

    The 4148 cylinder cupboard/till lock is suitable for wooden doors or tills up to 12.5mm material thickness.

    The bolt is withdrawn by key

    Case Size: 44.5mm (1.75”)

    Cylinder Projection: 16mm

    Case: Zinc, gold enamel

    Cap: Steel, zinc plated

    Striking Plate: Supplied separately.

    Spring Bolt: Zinc, brass plated

    Cylinder Type: 4pin tumbler mechanism

    Supplied with 2 nickel silver keys

    Key Blank Number: KB1153455

    Finish: PL Polished, Brass, SC Satin, Chrome

  • 63mm wardrobe/cupboard lock and key

    Wardrobe/Cupboard lock and key ideal for locking wardrobes and cupboards
