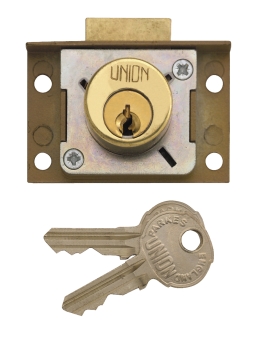

4138 cylinder cut cupboard/till lock - polished brass

For wooden doors, tills or drawers.

To suit doors or drawers up to 23mm material thickness.

Case Size: 51mm (2”) or 63.5mm (2.5”)

Cylinder Projection: 26.5mm

Case: Zinc, gold enamel

Cap: Steel, zinc plated

Striking Plate: Brass, 4138­10, See separate page

Deadbolt: Zinc, brass plated

Cylinder Type: Zinc, with brass cap.

Key Blank Number: KB11­534­55

Finish: PL ­- Polished Brass, SC ­- Satin Chrome
  • Dimensional Drawings (for Webshop/AEM/Priint) S3
    Product Datasheets (for Webshop/AEM) S3

  • Cylinder rotates to produce either a drawer lock or a right or left hand cupboard lock

    Upon closing the bolt is automatically engaged

    The bolt is withdrawn by key

    4­ pin tumbler mechanism

    Supplied with 2 nickel silver keys

  • NameValue
    BrandUNION
    EAN code5011802008120
    Range NameUNION
    Warranty (Years)3
    Finish TypePolished Brass
    Product SubtitleSecure Your Wooden Doors, Tills, Or Drawers With The UNION 4138 Cylinder Cut Cupboard/Till Lock In Polished Brass. This Versatile Lock Easily Adapts To Left Or Right-hand Use, Automatically Engages Upon Closing, And Features A Key-operated Bolt For Added Security. Elevate Your Safety With Style!
    SKUJ4138-PL-2.00
    SKU codeJ4138-PL-2.00
