UNION

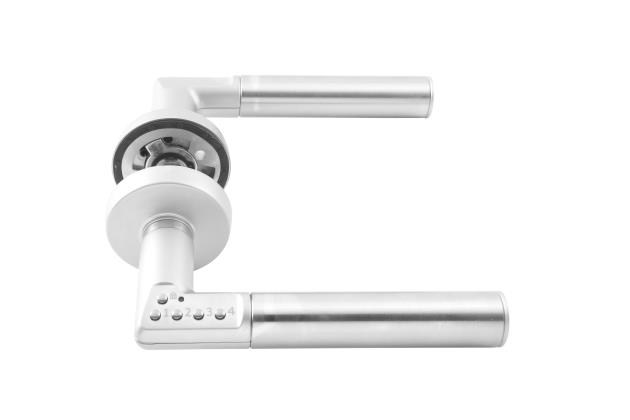

Code Handle round rose

4 digits separate your private or sensitive items from public access. Code Handle helps to control private access in public spaces, like archives, stock rooms, guest toilets, medical storage or offices. Tested to 30,000 life cycles. Keyless and convenient. Designed to suit DIN and Scandinavian lockcases. Can be programmed with up to 9 different user codes (4-6 digits) and 1 master code (6 digits). Available in round rose or long plate.

  • Secure your private rooms with no keys, no wires and no expensive access control system

    Visual LED displays locked or unlocked status

    Suitable for 35-80mm door thickness

    Power supply ­ 2 x lithium­ion batteries 3V (CR2)

    Adjustable on and off acoustic signals for operation of the lever and pressing the buttons

  • NameValue
    BrandASSA ABLOY

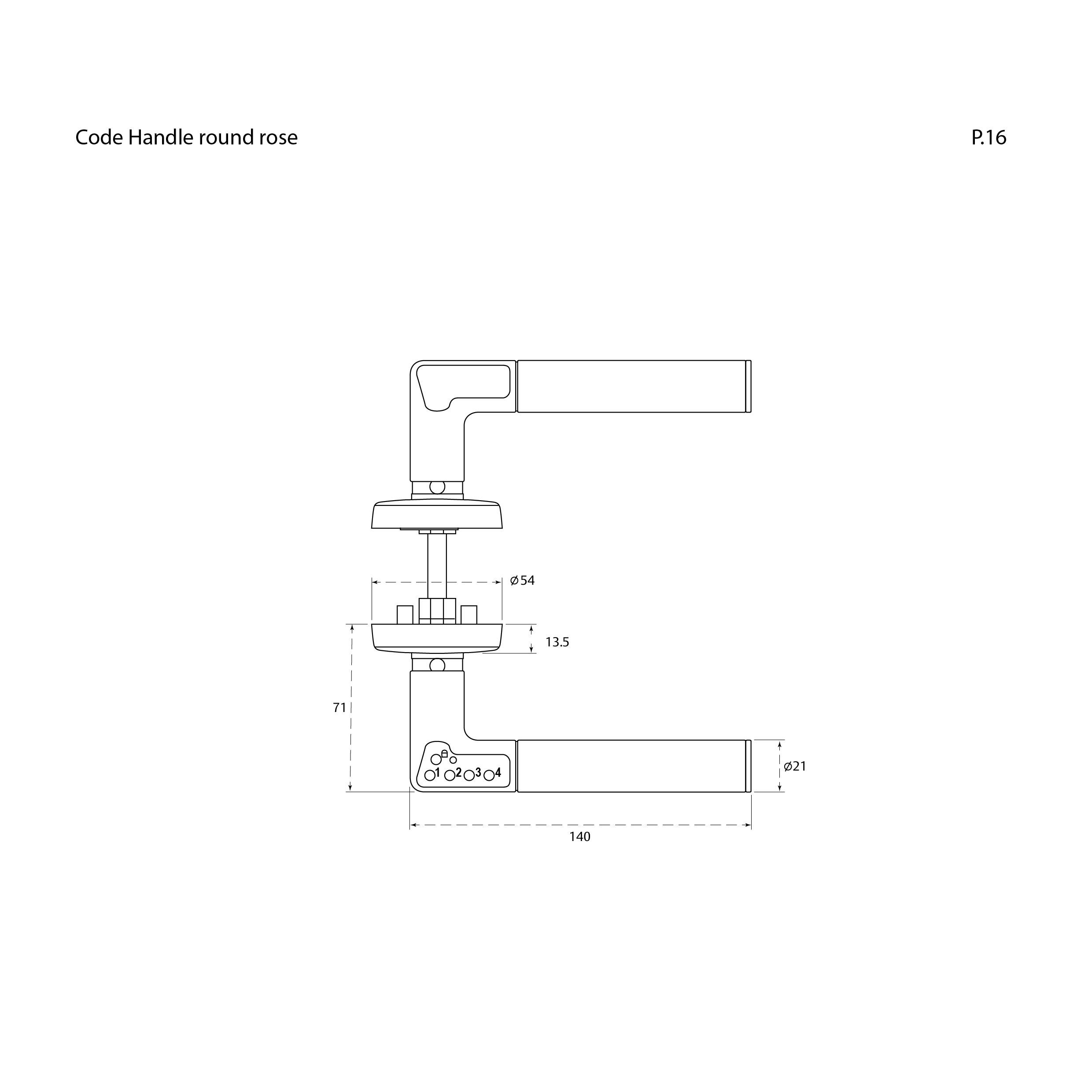

    Dimensions HXW253 X 48
    Door Thickness Range (mm)35 - 80mm
    Finish TypeStainless Steel
    Fire Door ApprovalYes
    Fire RatedTimber
    Fire Rated TimberFD30
    Locks & Latches FunctionAuto-locking
    Locks & Latches TypeEuroprofile/ DIN Lockcases
    Package TypeBoxed
    Product SubtitleSecure Your Spaces Effortlessly With The Code Handle Round Rose. This Keyless Solution Features 4-digit Codes For Private Access, Ideal For Public Areas Like Offices And Stock Rooms. With A Sleek Design, LED Status Display, And Compatibility With Various Door Thicknesses, It Combines Convenience And Security Seamlessly.
    StandardCE, EN 1634-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, EN 61000-6-2, EN 61000-6-3, UKCA
    Webshop Facet TypeEuroprofile/ DIN Lockcases
  • ProductProduct ID
    Code Handle round roseCHD-8802-8LH
    Code Handle round roseCHD-8802-8RH
    Code Handle round roseCHD-8810-LH
    Code Handle round roseCHD-8810-RH
    Code Handle round roseCHD-8812-8LH
    Code Handle round roseCHD-8812-8RH
