UNION

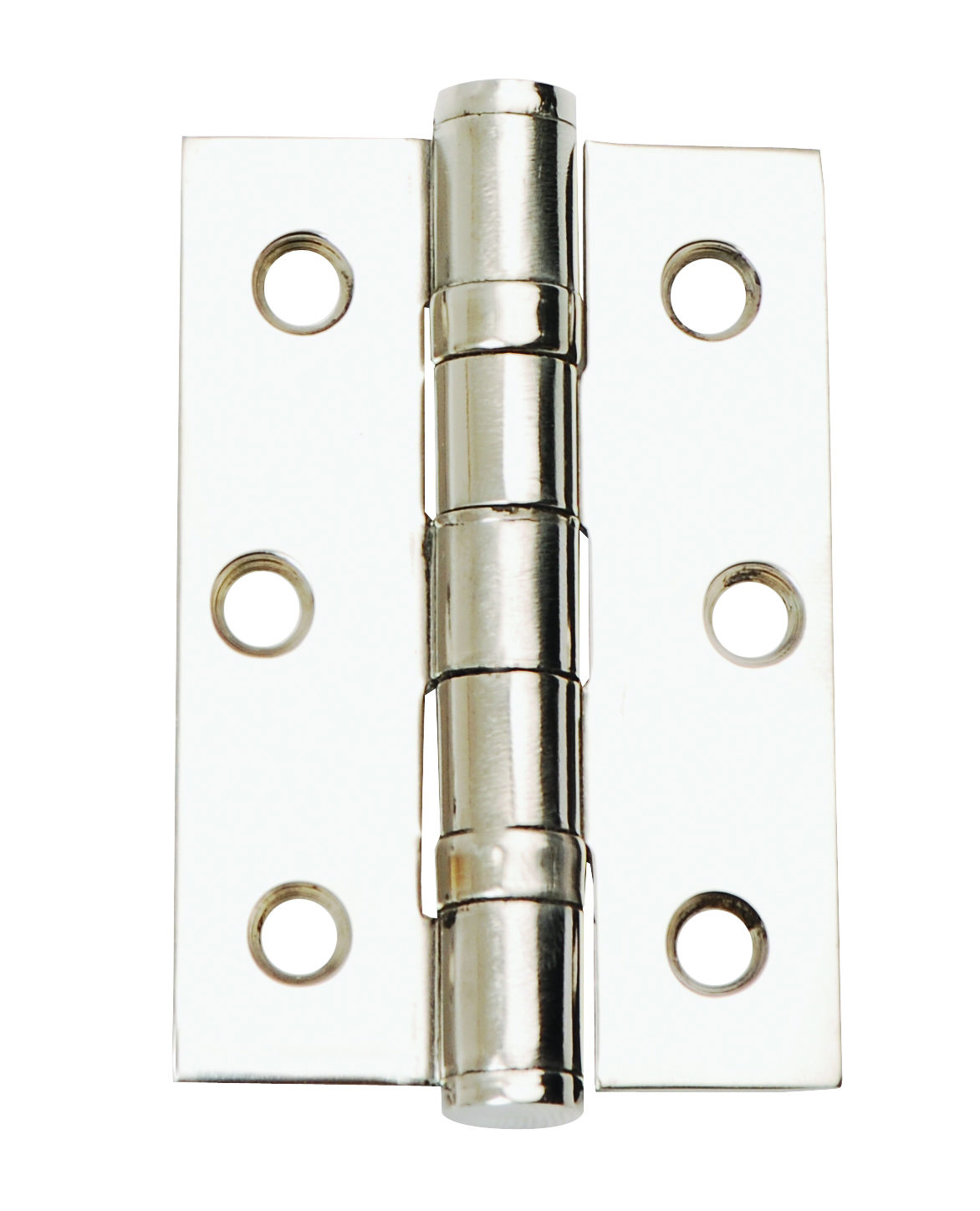

Ball bearing hinge

A ball bearing butt hinge that is suitable for use with door closers and other hardware. It can be used on doors up to 30kg in weight. The ball bearing butt hinge is available in 76mm and a number of finishes.
  • Fitting Instructions (for Webshop/AEM) S3

  • Light/medium duty hinges

    Equipped with ball bearings, for reduced friction and increased durability

    Ideal for use with door closers and other hardware

    Max door mass: 30kg

  • NameValue
    BrandUNION
    Dimensions (mm)76 X 51 X 2
    Durability200000
    Fire Door ApprovalYes
    Fire RatedYes
    Fire Rated MetalFD30, FD60
    Fire Rated TimberFD30, FD60
    HandingNone
    Hinges MaterialStainless Steel
    Hinges TypeBall Bearing
    Material201 Stainless Steel
    Max Door Weight (kg)30kg
    Min Door Thickness (mm)44
    Opening Angle180
    Pack Qty2
    Product SubtitleUpgrade Your Doors With Our Ball Bearing Hinge From Brand. Designed For Light To Medium Duty, This Durable Hinge Supports Doors Up To 30kg. Its Ball Bearing Design Reduces Friction, Ensuring Smooth Operation. Available In 76mm And Various Finishes, It's Perfect For Door Closers And Other Hardware.
    StandardCE, EN 1935
    StyleStandard
  • ProductProduct ID
    Ball bearing hingeDP005833
    Ball bearing hingeDP005834
    Ball bearing hingeDP005862
    Ball bearing hingeDP005863
    Ball bearing hingeDP005864
    Ball bearing hingeDP005865
    Ball bearing hingeXL000833
    Ball bearing hingeXL000834
    Ball bearing hingeXL000862
    Ball bearing hingeXL000863
    Ball bearing hingeXL000864
    Ball bearing hingeXL000865
