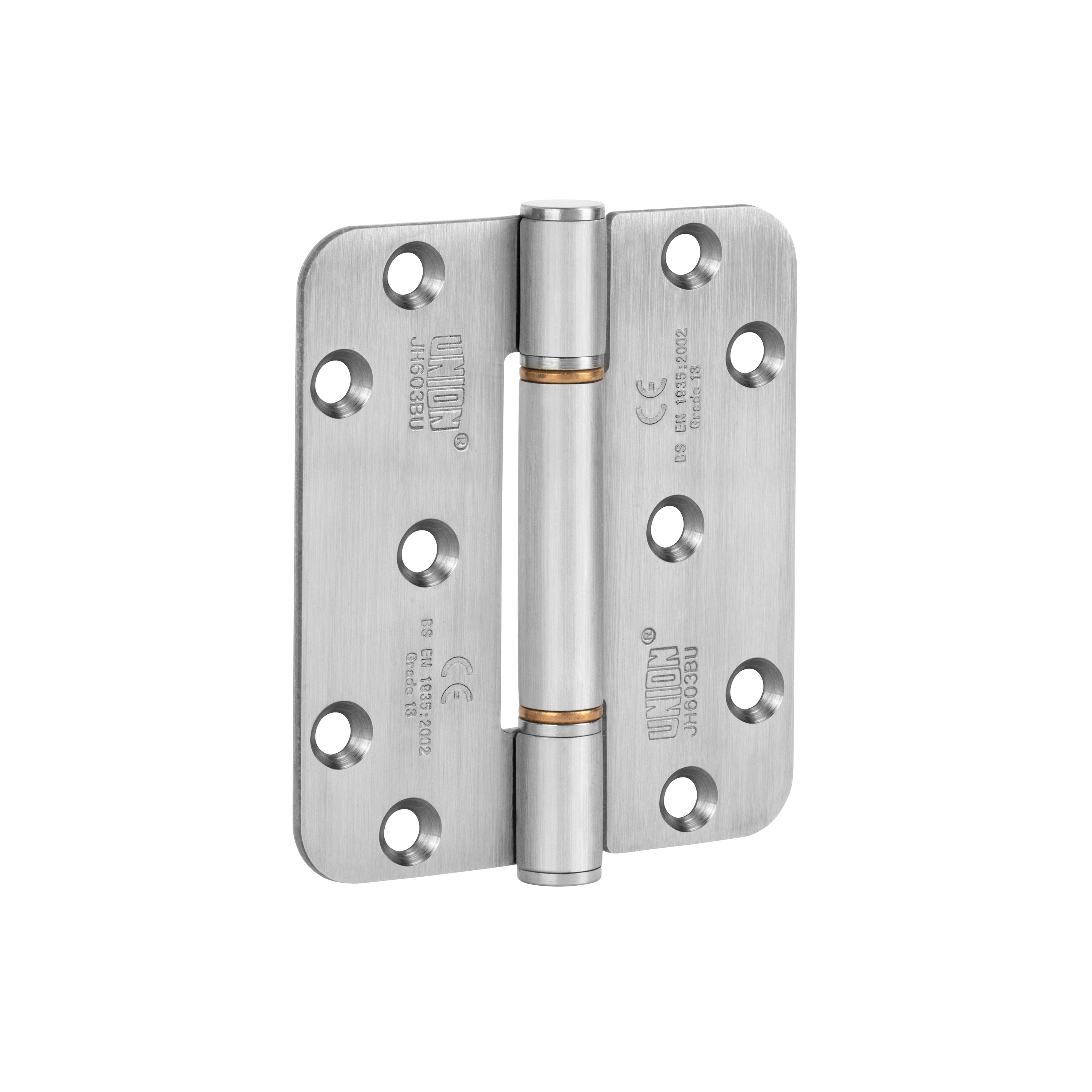

High performance PowerLOAD 603 | UNION

A highly durable UNION grade 13 bushed bearing hinge that features carbon steel and phosphorous bronze flanged bushed bearings to provide long life aswell as a fixed pin for improved cycling and durability. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount. *Intumescent protection must be used

Metal to metal wear and regular maintenance is significantly reduced by the carbon steel and phosphorous bronze flanged bearing bushes
Phosphorous bronze ring offers a great looking finish and increases longevity
Congruent fixing pattern spreads the load of the door more effectively within the timber
Radius and square corner variants available
Radius corner offers speed of fixing with machine tools

Name	Value
Brand	UNION
Dimensions (mm)	100 X 88 X 3
Fire Rated Timber	FD30, FD60
Handing	None
Material	Mild Steel
Max Door Weight (kg)	120kg
Min Door Thickness (mm)	44
Product Subtitle	Introducing The High Performance PowerLOAD 603, A Robust UNION Grade 13 Bushed Bearing Hinge Designed For Timber Fire Doors FD30 And FD60. Crafted From Durable Carbon Steel And Phosphorous Bronze, It Ensures Long-lasting Performance With Minimal Maintenance. Enjoy Peace Of Mind With A 25-year Guarantee, Perfect For Demanding Environments.
Standard	CE, Certifire, EN 1935, UKCA
Number of cycles tested to	200,000

Product	Product ID
High performance PowerLOAD 603	JH603BUFR-M-BZP
High performance PowerLOAD 603	JH603BUFR-M-SSF
High performance PowerLOAD 603	JH603BUFR-U-BZP
High performance PowerLOAD 603	JH603BUFS-U-BZP
High performance PowerLOAD 603	JH603BUFS-U-SSF
