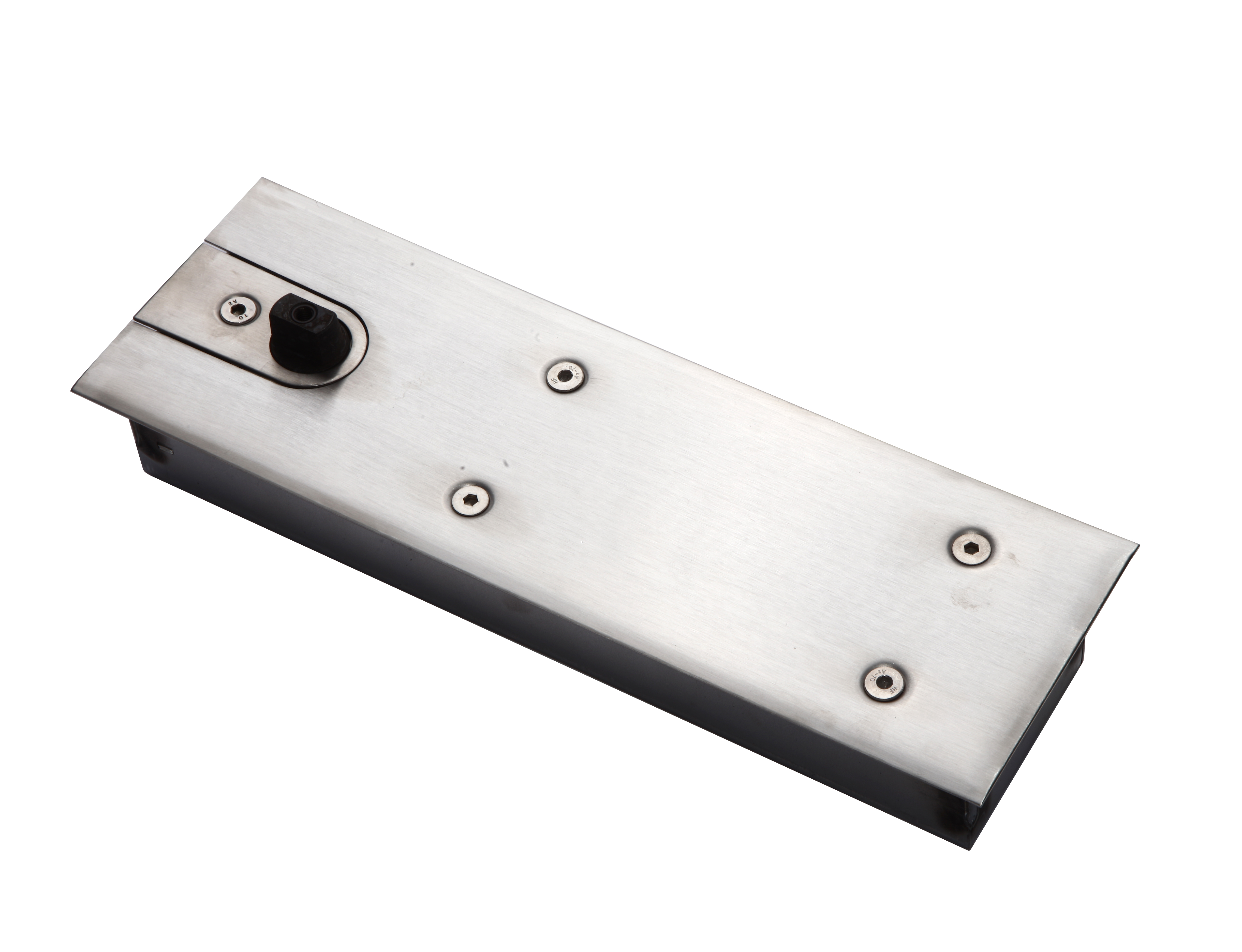

Exidor 2000/4F floor pivot
Exidor's 2000/4F floor pivot is ideal for floor-mounted applications where there is no requirement for automated door-closing, and where using hinges is difficult because the door is heavy or a double action is required.
Suitable for use on doors up to 400kg
Backcheck
Highly efficient double cam mechanism
Unique 3° leading edge adjustment for improved alignment and a three dimensional in-box adjustment
Visual spirit level fitting aid
Name | Value |
---|---|
Brand | UNION |
EAN code | 5013904904041 |
Range Name | Exidor |
Warranty (Years) | 10 |
Anti Slam | No |
Arm Supplied | Order Separately |
Backcheck | Yes |
Cover Trim Plate | Exposed Body |
Delayed Action | No |
Door Leaf Material | Timber & Metal |
Double Action | Yes |
Finish | Self Colour |
Finish Type | Specialist |
Fire Rated | Yes |
Fire Rated Metal | FD120, FD240, FD60, FD90 |
Fire Rated Timber | FD120, FD30, FD60 |
Force Adjustment | Yes |
Free Swing | No |
Height Adjustable Arm System | N/A |
Hold Open - Electromechanical | No |
Hold Open Function | No |
Hold Open - Manual | No |
Installation Type | Floor Spring |
Latching Speed | Yes |
Max Closing Force | EN4 |
Max Door Weight (kg) | 400kg |
Max Door Width (mm) | 1100mm |
Max Opening Angle | 180° |
Max Opening Angle Hinge Side | N/A |
Max Opening Angle Non Hinge Side | N/A |
Mechanism | Cam Action |
Min Closing Force | EN1 |
Min Door Thickness (mm) | 44 |
Mounting Method | N/A |
Package Type | Boxed |
Product Subtitle | Introducing The Exidor 2950 Series EN 1 - 4 Floor Spring By UNION. This Heavy-duty Solution Is Ideal For Demanding Door Environments, Supporting Doors Up To 400kg. Available In Single Or Double Action, It Features A Highly Efficient Double Cam Mechanism And Backcheck For Enhanced Performance. |
Security | No |
Single Action | Yes |
SKU | 20030080 |
Standard | BS 8300, CE, Certifire, EN 1154, UKCA, UL |
Function | Backcheck, Double Action, Single Action |
