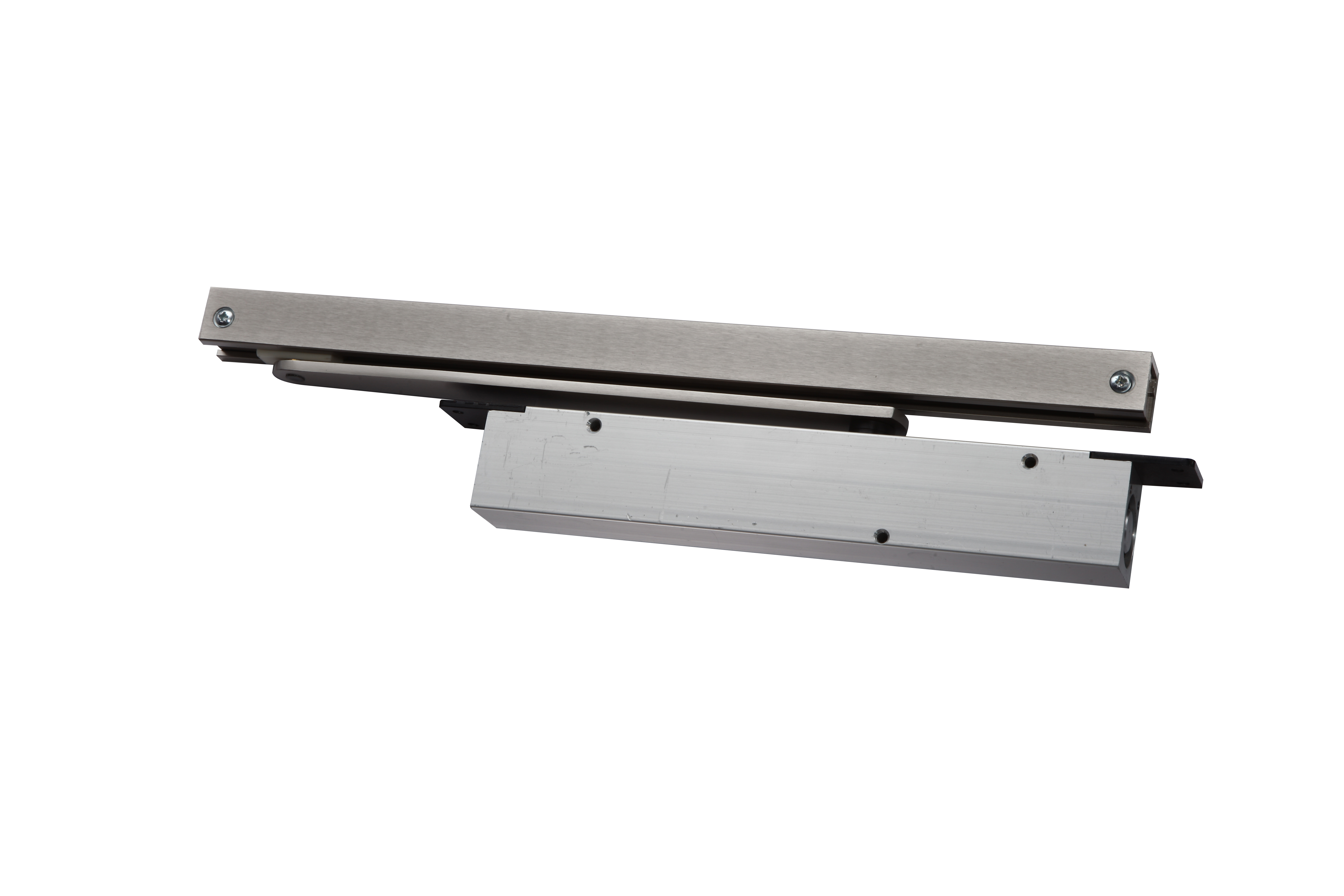

Adjustable cam action power size 2-4
Suitable for doors up to 100kg
32mm wide body
Single action
Adjustable latching and sweep speed
| Name | Value |
|---|---|
| Brand | UNION |
| EAN code | 5013904906052 |
| Range Name | Exidor |
| Warranty (Years) | 10 |
| Backcheck | No |
| Hold Open Function | Yes |
| Installation Type | Concealed |
| Latching Speed | Yes |
| Max Closing Force | EN4 |
| Max Door Weight (kg) | 80kg |
| Max Door Width (mm) | 1100mm |
| Min Closing Force | EN2 |
| Product Subtitle | Introducing The Exidor Atom 6805 Series Concealed Door Closer By UNION. Designed For Discreet Control, It Features An Adjustable Power Size Of 2-4, Making It Ideal For High-traffic Areas. With A Sleek 32mm Wide Body And A Matching Arm Included, It's Perfect For Doors Up To 100kg. Enjoy Reliable Performance With Style! |
| SKU | 20080006 |
| Standard | CE, Certifire, EN 1155 |
The SC-CE3F is a concealed cam action door closer with a fixed power size of EN 3. It has been designed with adjustable closing and latching speed and is ideal in environments where superior aesthetics are needed or reduced vandalism. Thanks to its slimline profile it also is quick to install. A guide rail dampener is available to purchase with the SC-CE3F. It has also been tested to UKCA, EN 1154, and fire rated for timber doors FD30 and FD60 as well as metal doors up to FD240. However, it must be fitted with the appropriate intumescent for fire door applications.
