How does a door closer work?

A door closer is a mechanical device that closes a door, once it’s been opened, in a controlled way. They stop doors from slamming shut and limit the spread of fire and draught throughout a building. When selecting a door closer, it’s important to ask the following questions…

Is it for a fire door?

When choosing a door closer for any door, you want to be sure to get it right, but it’s especially important if it’s a fire door. First of all, fire doors must be fitted with an appropriately CE tested door closer. There are two CE standards that you need to be aware of:

·         EN 1154 – the CE standard for mechanical door closers

·         EN 1155 – the CE standard for electromagnetic door closers

Second, you must make sure you have chosen a door closer that has been appropriately fire rated. For example, a 60-minute timber fire door must be tested to FD60. You don’t want to be held accountable for an incident should a fire ever break out, so it’s critical that you get this right.

What power size is needed?

This will depend on the width and weight of the door. Here’s a quick, at-a-glance guide to power sizes.

It’s important to note that for a fire door, EN3 is the minimum requirement.

Power size

Maximum door width

Maximum door weight

EN1

750mm

20kg

EN2

850mm

40kg

EN3

950mm

60kg

EN4

1100mm

80kg

EN5

1250mm

100kg

EN6

1400mm

120kg

EN7

1600mm

160kg

What fixing position is needed?

With three different fixing positions available, this will depend on where the door closer is being installed.

What type of door closer do you need?

This final question will come down to the key demands that you need the product to be able to meet and overcome. With a wide range of different types to choose from, you can be sure to find a product that meets your exact needs.

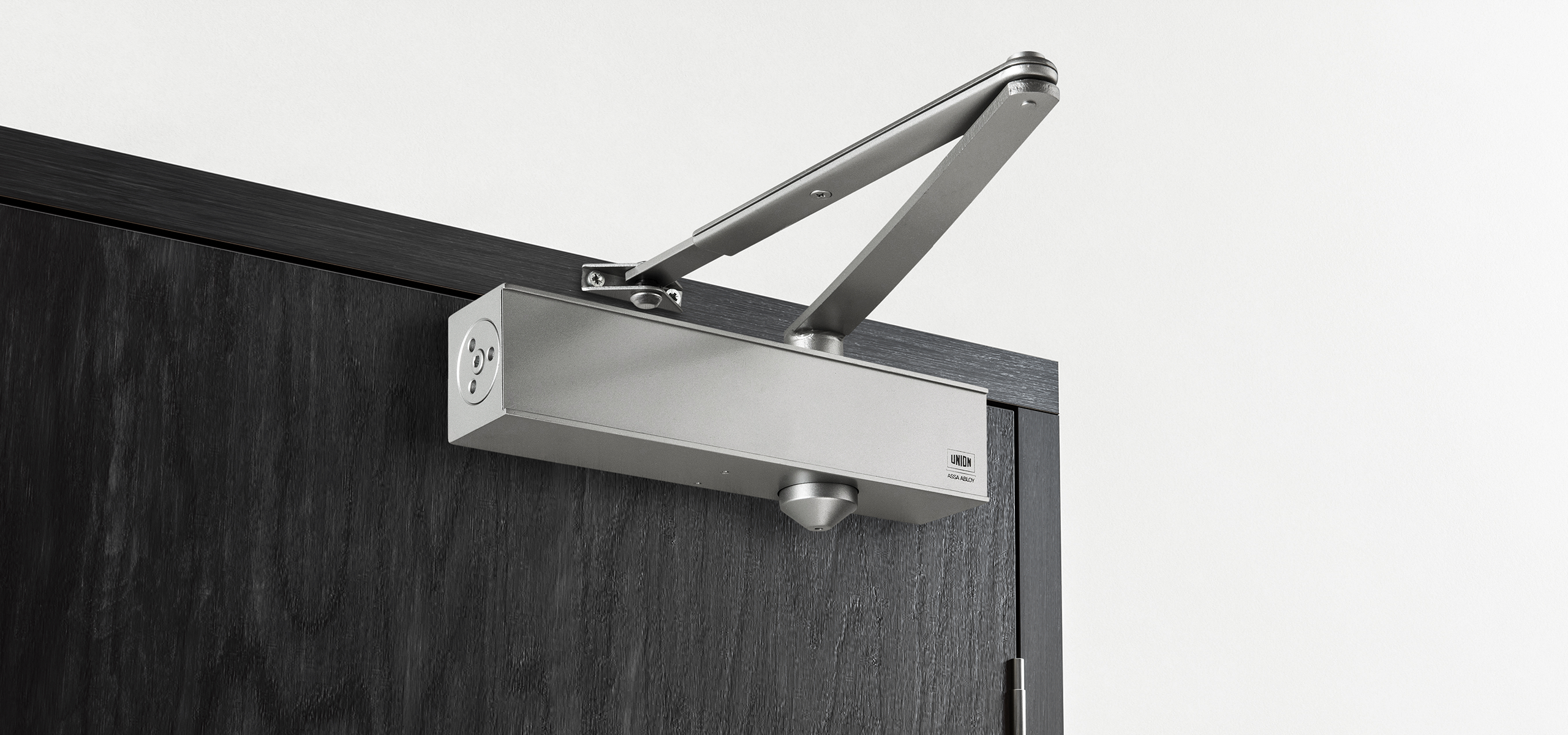

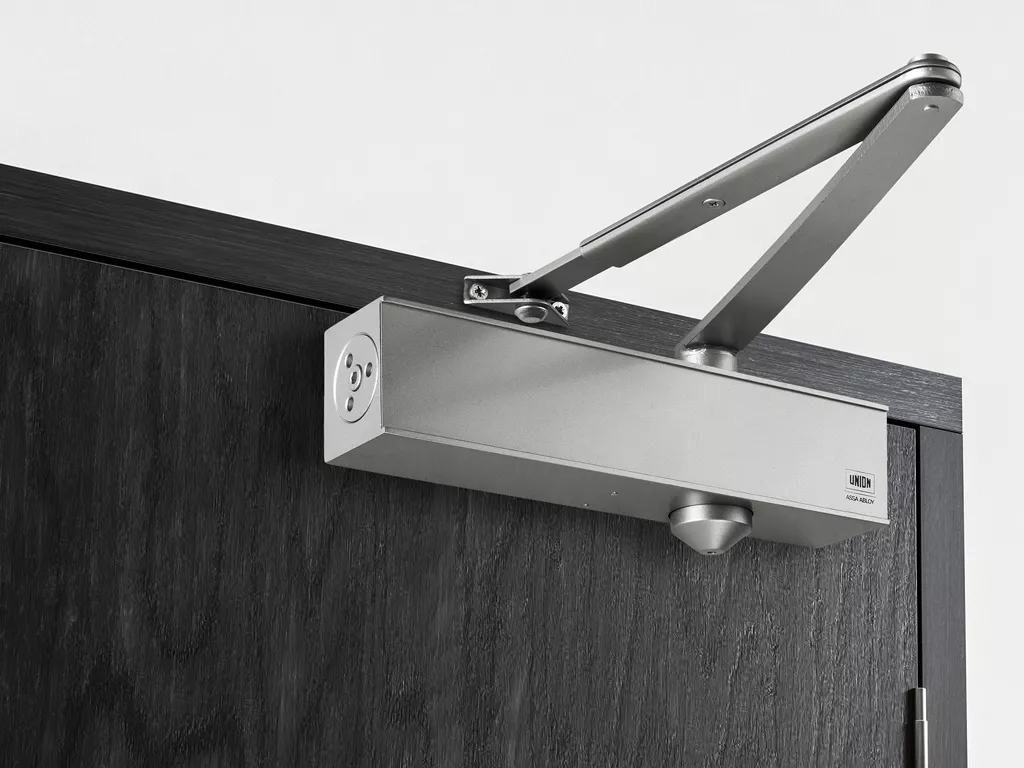

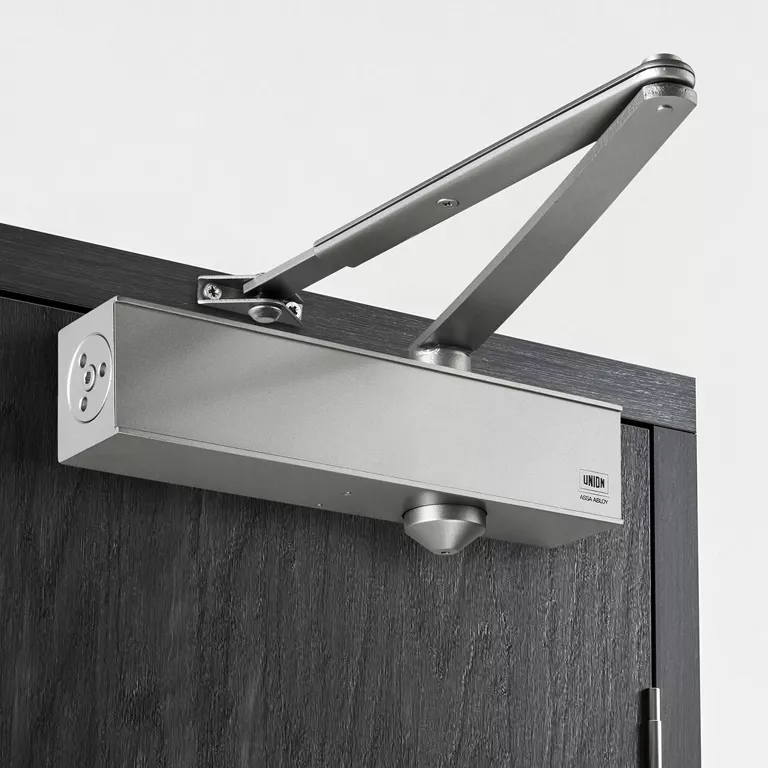

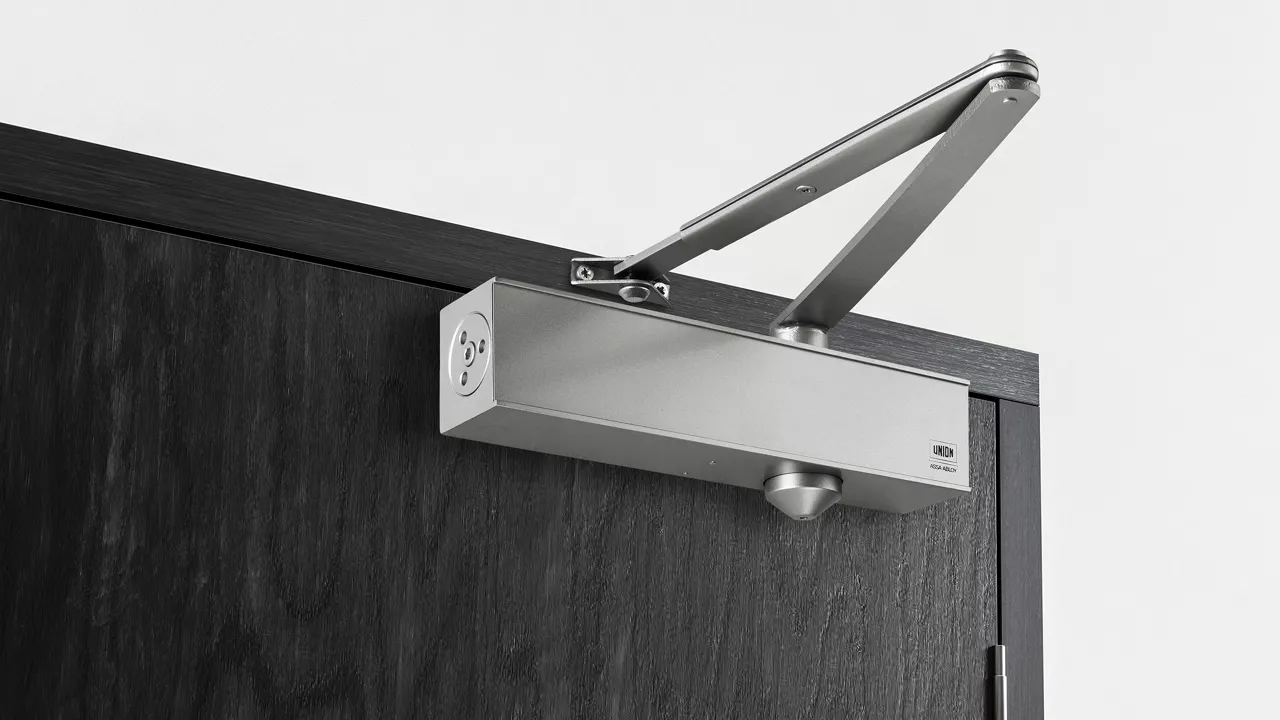

Overhead door closers

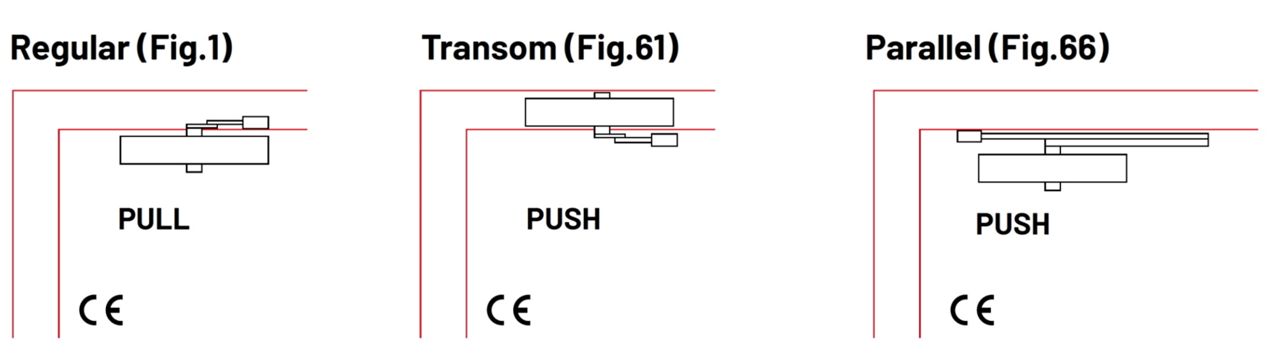

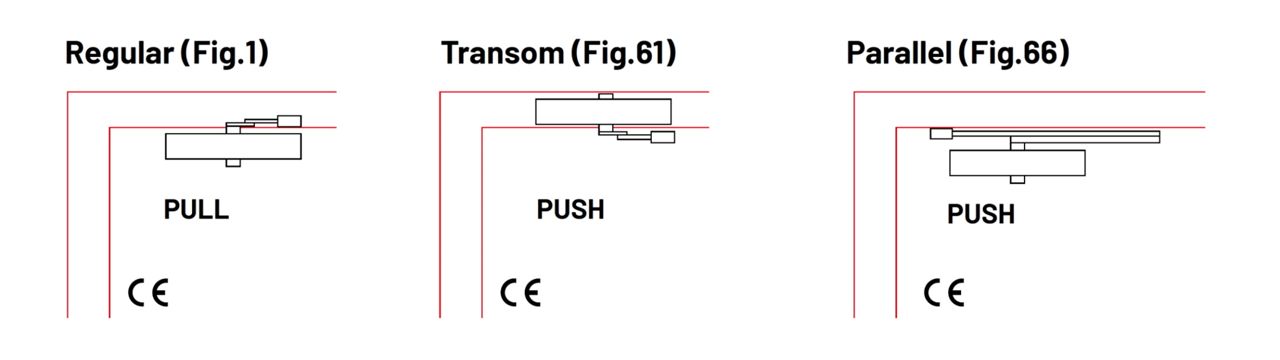

An overhead door closer is surface mounted, designed to fit on the face of a door or frame. When choosing an overhead door closer, it’s recommended to check that products are fully CE marked and fire door tested in all three fitting positions, whether it’s regular (commonly called figure 1), transom (figure 61) or parallel (figure 66). So, no matter what fitting position is needed for your installation, you can be sure a door closer will perform as expected.

View our range here

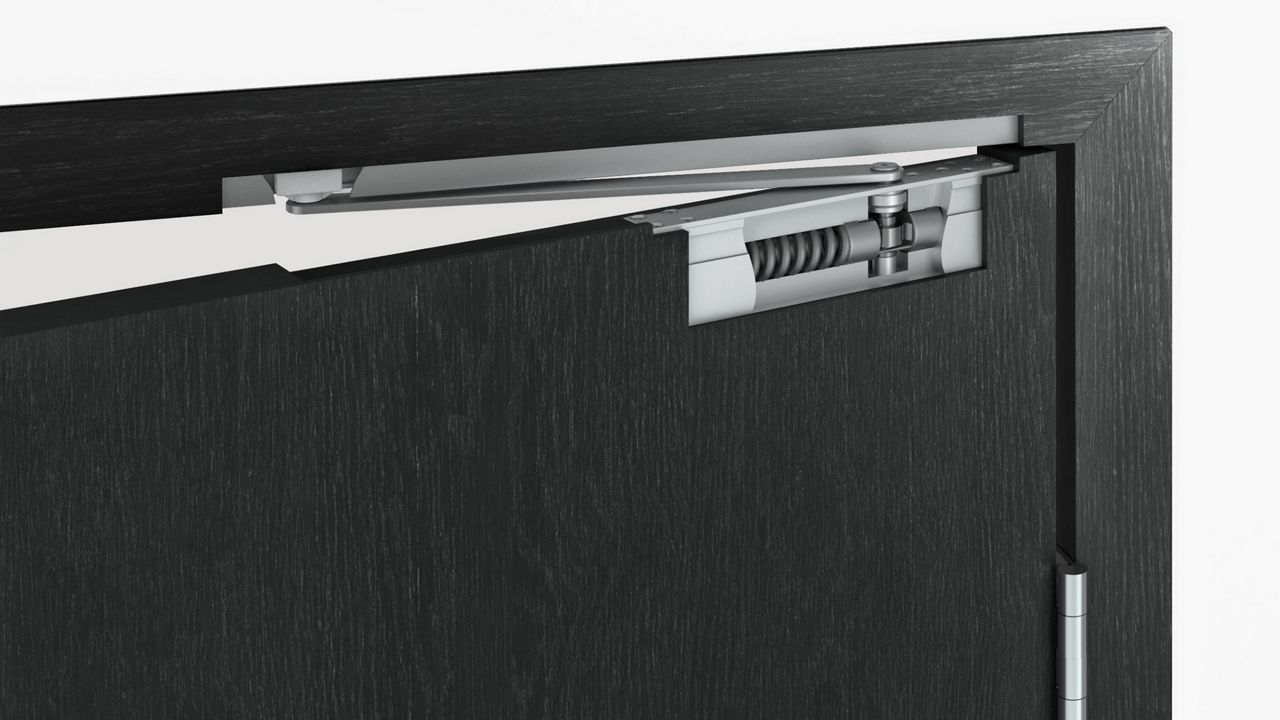

Concealed door closers

For some buildings, the design and look of a space is the top priority. Fitting within the leaf of the door and hidden from view, a concealed door closer helps make sure doors look clean and smart. These are a fantastic option if you’re working on a residential project or if there’s a big chance that a door closer is being installed in a space that might be vandalised or tampered with. As the product can’t be seen, a concealed door closer helps reduce this issue from becoming a problem.

As these are morticed into the door, an intumescent kit would generally be required to maintain the fire integrity of the door.

View our range here

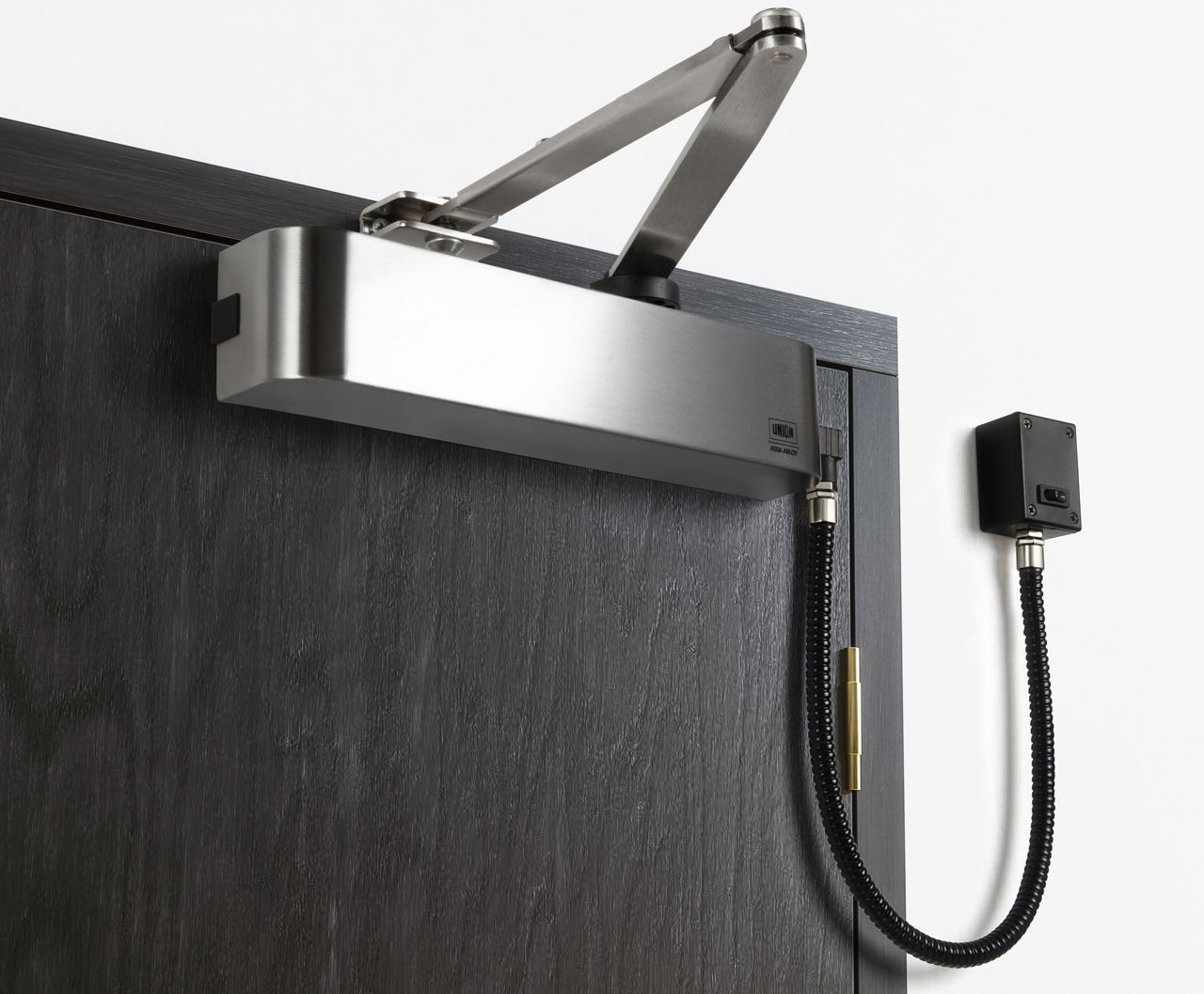

Electromagnetic door closers

An electromagnetic door closer is linked to a fire alarm system, which means they close automatically if a fire alarm sounds. When the alarm is triggered, the closer immediately shuts the door to help maintain the integrity of a fire door.

An electromagnetic door closer is available in two options, so you can choose the one that’s best suited to meet your needs.

  • Hold-open: Holds the door in the open position. This is perfect for circulation routes, or busy environments where lots of people are passing through every day. These include routes that would benefit from fewer touchpoints.
  • Free-swing: Operates almost as if no closer is fitted. This is ideal for a space such as a care home bedroom, where minimal force might be needed to open or close a door.
View our range here
Follow these steps and you’ll be sure to find a door closer that meets your needs. If you have any questions, don’t hesitate to get in touch – we can help.
Contact us
