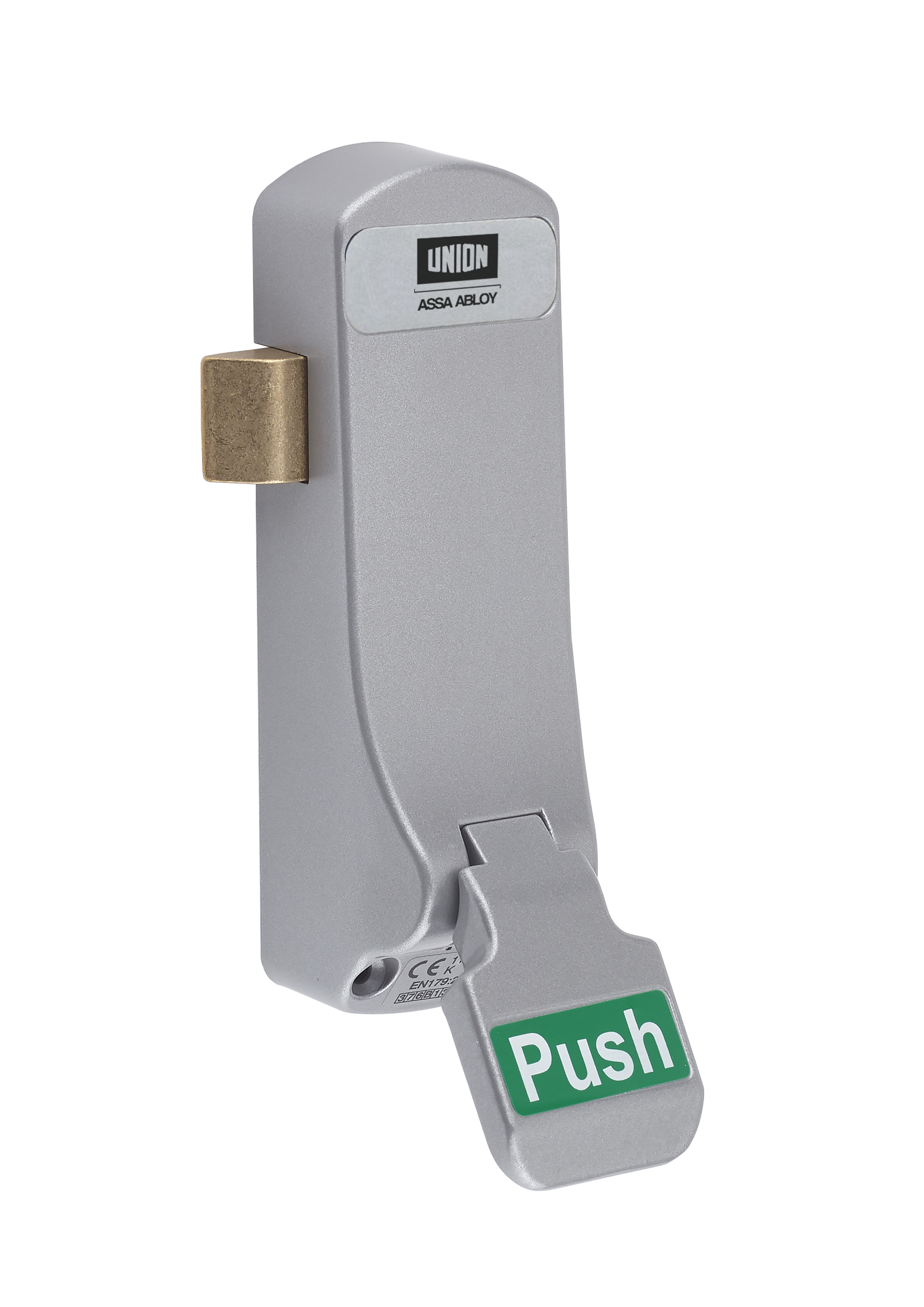

Exisafe CE854 emergency latch device

The Exisafe CE854 push pad latch is suitable for outward opening single doorsets, where areas are not accessed by the public and all users are familiar with building safety exit routes. It has been designed with a small and compact push pad and is the ideal emergency exit solution. It is tested to EN 179 and up to FD120 on timber doors and FD240 on metal doors.
  • Brochures (for Webshop/AEM) S3
    Dimensional Drawings (for Webshop/AEM/Priint) S3

  • Single emergency latch

    Universal handing

    Push pad - small and compact

    For use on outward opening single doorsets

    Timber fixings supplied

  • NameValue
    BrandUNION
    ActivationPush Pad
    Bolt StyleInternal Bolts / Latches
    Cylinder DetailN/A
    Cylinder IncludedNo
    Dimensions (mm)100 X 130 X 220
    DoggedN/A
    Door Height (mm)2440
    Door OpeningOutward
    Door TypeMetal, Single, Timber
    Durability200000
    Escape Hardware FeatureSingle Door
    Escape Hardware FunctionEmergency Hardware
    FinishSilver
    Fire Door ApprovalYes
    Fire RatedSteel & Timber
    Fire Rated MetalFD240
    Fire Rated TimberFD120
    HandingUniversal
    Locking Points1
    Max Door Height (mm)2440
    Max Door Thickness (mm)46 To 51
    Max Door Weight (kg)200kg
    Max Door Width (mm)1220
    Micro SwitchedN/A
    Mounting MethodSurface Mounted Pad
    Operator DetailPush Pad
    Product SubtitleIntroducing The Exisafe CE854 Emergency Latch Device, A Compact And Efficient Solution For Outward Opening Doors. Designed For Familiar Users In Non-public Areas, This Single Emergency Latch Features Universal Handing And A Small Push Pad For Easy Access. Trust Exisafe For Your Safety Needs!
    Projection (mm)83
    SKU codeJ-CE854ELM-SIL
    StandardCertifire, EN 1634-1, EN 179, UKCA
    StylePanic
    Suitable Door TypeSteel & Timber
    FeatureSingle Door
  • ProductProduct ID
    Exisafe CE854 emergency latch deviceJ-CE854EL-SIL
    Exisafe CE854 emergency latch deviceJ-CE854ELM-SIL
