UNION

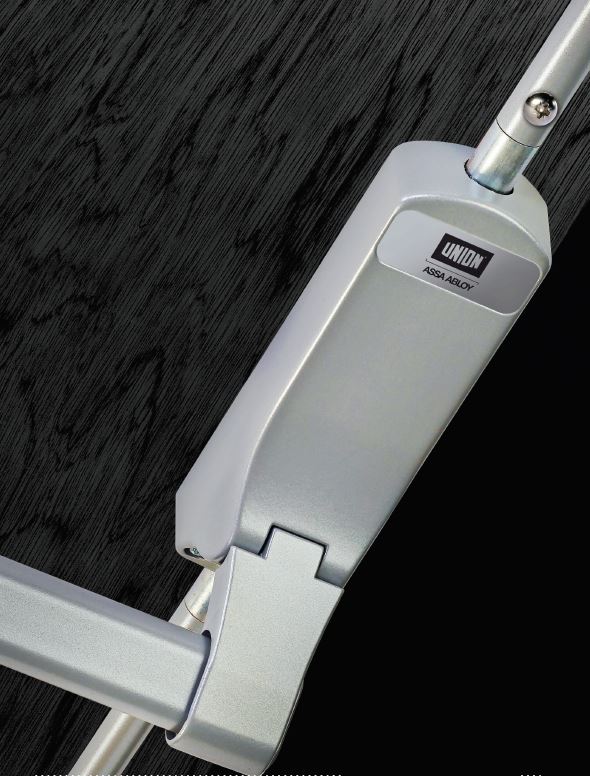

Exisafe CE851 panic bolt

The Exisafe CE851 panic bolt is a surface-mounted push bar for use on single doors or as part of a double-door solution. It is ideal for final exit escape doors that are used by the general public. The push bar can be cut to size on site to fit each door and is compatible with the knob and lever CE855OAD devices. It is tested to EN 1125 and up to FD120 on timber doors and FD240 on metal doors.
  • Brochures (for Webshop/AEM) S3
    Dimensional Drawings (for Webshop/AEM/Priint) S3

  • 2 point panic shoot bolt

    Universal handing

    1180mm push bar - can be cut to size on site

    For use on outward opening single doorsets

    Timber or metal fixings variants available

  • NameValue
    BrandUNION
    ActivationPush Bar
    Bolt StyleShoot Bolts
    Cylinder DetailN/A
    Cylinder IncludedNo
    Dimensions (mm)1220 X 160 X 75
    DoggedN/A
    Door Height (mm)2440
    Door OpeningOutward
    Door TypeEither Leaf, Inactive Leaf, Non-rebated Double, Rebated Double, Single, Steel, Timber
    Durability200000
    Escape Hardware FeatureSingle Door
    Escape Hardware FunctionShoot Bolt
    FinishSilver
    Fire Door ApprovalYes
    Fire RatedSteel & Timber
    Fire Rated MetalFD240
    Fire Rated TimberFD120
    HandingUniversal
    Locking Points2
    Max Door Height (mm)2440
    Max Door Thickness (mm)46 To 51
    Max Door Weight (kg)200kg
    Max Door Width (mm)1220
    Micro SwitchedN/A
    Mounting MethodSurface Mounted
    Operator DetailPush Bar
    Product SubtitleIntroducing The Exisafe CE851 Panic Bolt, A Versatile Surface-mounted Push Bar Perfect For Single Or Double Doors. Designed For Public Escape Routes, It Features A 1180mm Length That Can Be Easily Cut To Size. Enjoy Universal Handing And Reliable 2-point Panic Shoot Bolt Functionality For Enhanced Safety.
    Projection (mm)98
    SKU codeJ-CE851PBM-SIL
    StandardCertifire, EN 1125, EN 1634-1, UKCA
    StylePanic
    Suitable Door TypeSteel & Timber
    FeatureSingle Door
    FunctionShoot Bolt
  • ProductProduct ID
    Exisafe CE851 panic boltJ-CE851PB-SIL
    Exisafe CE851 panic boltJ-CE851PBM-SIL
