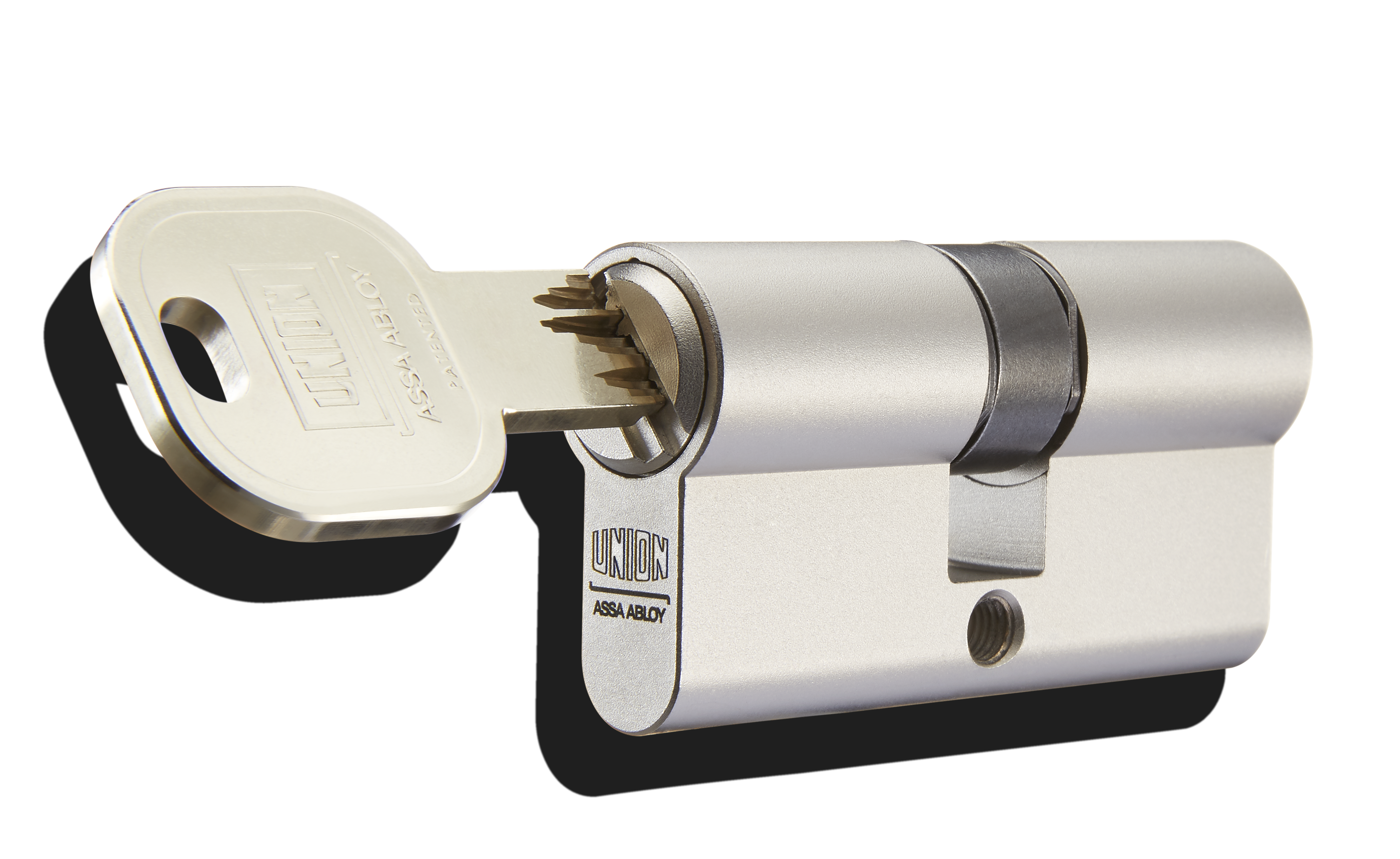

keyPRIME™ is a sleek, modern cylinder system designed with economy, safety, and security in mind for all modern building requirements. The cylinder platform boasts secure patented protection until 2036 and is tested to the stringent requirements of EN 1303:2015 for all security needs.
The solid 3mm reversible key is durable and rigid to withstand the toughest environments; designed with symmetrical faces and no sharp edges, the system is simple and easy to use as the key will work no matter which way it’s inserted.
The removal of sharp edges and corners from the key design makes the system a perfect solution for healthcare and education applications, as the key is prevented from being used to cause harm to users, patients, or pupils.
The 6 pin cylinder platform utilises robust dimple key technology which is designed for high use environments; the system is available in a range of cylinder profiles and functions to suit new specification requirements.
• Patent protection until 2036 with a multi-level key stop on both the cylinder and key preventing unlawful copying of keys and preventing unauthorised access
• Achieves Grade D, the highest level of attack resistance, within EN 1303:2015 which includes testing against; drilling, chisel attack, twisting and plug extraction*
• 97,000 keying combinations for average/medium master keying requirements
• Extended key neck for use with security hardware
• Simple to use reversible system with symmetrical faces and no sharp edges
• Secure key control with key blanks only available from approved stockists and dealers
Patent protection 2036
No. of pins 6 pins
System type Reversible / flat key
Keying options Master keyed, to pass or differ
Number of keys per cylinder All cylinders supplied with two keys
Key thickness / material 3mm / Nickel silver
Extended key neck Yes
Paracentric key profile No
System pin material NS
Key combinations 97,000
Durability 500,000 cycles (accelerated test)
Drill protection 5 minutes drilling resistance
Plug pull protection 15kN pulling resistance
Anti-pick features Yes
Anti-bump features Yes (KD product only)
Corrosion resistance 240 hours
Accessories See cylinder accessory section for range of escutcheons, distance collars and padlock dust covers
Certification
Certified in compliance with EN 1303:2015
Name | Value |
---|---|
Brand | Union |
Certification | <span Style:"color: Rgb(70, 70, 70); Font-family: "Union Barlow"; Font-size: 16px;">Certified In Compliance With EN 1303:2015</span> |
Product Subtitle | Introducing The UNION KeyPRIME™ By Union, A Modern Cylinder System That Prioritises Safety And Security. With Patented Protection Until 2036, This Durable, 3mm Reversible Key Features A User-friendly Design Without Sharp Edges, Making It Ideal For Healthcare And Education. Enjoy Peace Of Mind With Robust Protection And 97,000 Keying Combinations. |
SKU | UNIONkeyPRIME |
SKU code | UNIONkeyPRIME |
keyULTRA™ is UNION’s flagship master key platform with a trusted serrated key technology and a superior, robust build quality. The range has secure patent protection until 2028 and is tested to the stringent requirements of EN 1303:2005.
The exclusive 6 pin system uses patented DuraPIN™ telescopic pin technology ensuring the highest levels of security and guaranteeing your master key system remains secure.
The specialised patented cut works in conjunction with the DuraPIN™ technology to prevent unauthorised key duplication. In addition, the 3.1mm thick key and oversized key bow offers added strength and ease of use.
A wide variety of keyULTRA™ cylinder profiles and functions are available in a selection of high-quality finishes. The range can be specified to ensure all modern specification requirements are accommodated and are backed with the assurance of a high-quality British product design.
• Patent protection until 2028 with a patented DuraPIN™ telescopic pin technology on both the key and cylinder, preventing unlawful duplication of keys and unauthorised access
• Achieves Grade 2, the highest level of attack resistance and Grade 6, the highest grade of durability, within EN 1303:2005 which includes testing against; drilling, chisel attack, twisting and plug extraction*
• 550,000 keying combinations for large master keying requirements
• Trusted serrated technology on a traditional product design
• Oversized solid key bow and blade design, made from high quality nickel silver which offers excellent durability
• Secure key control with key blanks only available from approved stockists and dealers
Patent protection 2028
No. of pins 6 pins
System type Serrated/sawn key
Keying options Master keyed only
Number of keys per cylinder All cylinders supplied with two keys
Key thickness/material 3.1mm / Nickel silver
Extended key neck No
Paracentric key profile Yes
System pin material Nickel silver
Key combinations 550,000
Durability 500,000 cycles (accelerated test)
Drill protection 5 minutes drilling resistance
Plug pull protection 15kN pulling resistance
Anti-pick features Yes
Anti-bump features Yes
Corrosion resistance 240 hours
Certification
Certified in compliance with EN 1303:2005 and EN 1634-1:2000 and fire tested to FD30 and FD60 timber, FD120 Steel
